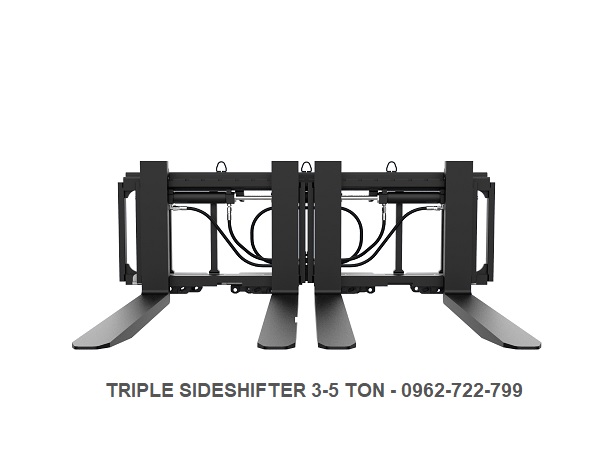

Triple Sideshifter is an important auxiliary device that allows the forklift to move the forks to the left, right and even the middle flexibly without having to move the entire vehicle. This is an optimal solution for warehouses with narrow aisles or requiring quick loading and unloading of goods.
Technical specifications triple sideshifter 3-5 ton capacity
| Capacity | Load | Model | Min.Truck Carriagr |
Max forks | Outer Spacing | Sideshifting | Weight |
| kg | mm | mm | mm | mm | S | kg | |
| 3200 | 500 | SST32F-1800B | 1400 | 1545~1945 | 1610~1810 | ±100 | 230 |
1, Uses of Triple Sideshifter on forklifts
Increased productivity : Helps drivers work faster when picking or placing orders without having to move the truck much.
Fuel savings & reduced wear : Reduces unnecessary steering, helping to protect tires and transmission systems.
Flexible with a variety of pallets : Especially useful in warehouse environments with many different pallet sizes.
Reduced turnaround time : Suitable for areas with limited space.
2, Structure and operating principle
Three-sided sliding frame : Includes two moving brackets that allow the fork to slide left, right and center.
Hydraulic cylinder : Connects to the forklift’s hydraulic system, allowing fork to move flexibly.
Guide bar : Helps the fork move smoothly and accurately.
This set usually uses 2 to 3 hydraulic oil lines , depending on the specific design of the forklift.
3, Which forklifts can be fitted with Triple Sideshifter?
Diesel, electric or LPG forklifts can all be installed.
Reach Trucks (high-reach forklifts) can also be equipped with this set to support picking goods in high-shelf warehouses.
It is necessary to check the forklift load capacity , because the Triple Sideshifter set can reduce the lifting load slightly due to the weight of the accessory set.
4, Triple Sideshifter Price & Installation
Triple Sideshifter set price depends on:
Forklift type & load capacity
Manufacturer & origin (Japan, Europe, China, etc.)
Hydraulic connection type (2-3 oil lines)
Are you looking for attachments to install triple Sideshifter for which forklift? I can advise more about the specifications or suitable brand.
Contact: 0962722799
