Telescopic forks (extended forks) for forklifts are an important accessory that helps expand the operating range of forklifts, especially when handling large-sized goods or loading and unloading pallets over long distances.

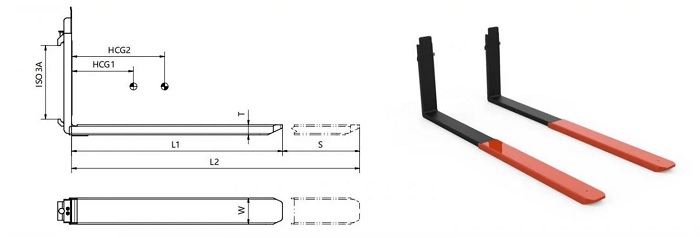

Telescopic fork specifications
| Capacity | Model | Stroke | Carriage | Fork | Fork | Weight |
| @Load | No. | Width | Length | Length | ||
| Center | Retracted | Extended | ||||
| kg | S | W*T | L1 | L2 | kg | |
| mm | mm | mm | mm | |||
| 2500@600 | TFQ2- 25E-2A-1350 | 1000 | 140*62 | 1350 | 2350 | 203 |
| 2500@600 | TFQ2- 25E-2B-1350 | 1000 | 140*62 | 1350 | 2350 | 210 |
| 2500@600 | TFQ2- 25E-3A-1350 | 1000 | 140*62 | 1350 | 2350 | 214 |
1, Uses of telescopic forks
Extended reach: Allows forklift to reach pallets at a distance without moving.
Double pallet handling: Some telescopic forks can extend to lift two pallets at once.
Increase productivity: Helps reduce the number of moves, increasing work efficiency.
Flexible: Suitable for many industries such as logistics, cold storage, industrial production, construction…
2, Structure of telescopic fork
Main frame : Made of high tensile steel.
Hydraulic cylinder: Helps extend or shorten the fork.
Extendable fork head: Runs on slide rails or cylinders to change length.
3, Types of telescopic forks
Single-Deep Telescopic Forks: Used for standard forklifts, extended to reach pallets in the inner row.
Double-Deep Telescopic Forks: Allows lifting 2 pallets at the same time, suitable for dense warehouses.
4, Practical application
Warehouse and logistics: Optimize storage space by retrieving goods deep inside shelves without the need for wide aisles.
Manufacturing industry: Handling bulky goods such as steel, wood, glass…
Port & container: Convenient for quick loading and unloading of goods.
Are you looking for attachments to install telescopic forks for which forklift? I can advise more about the specifications or suitable brand.
